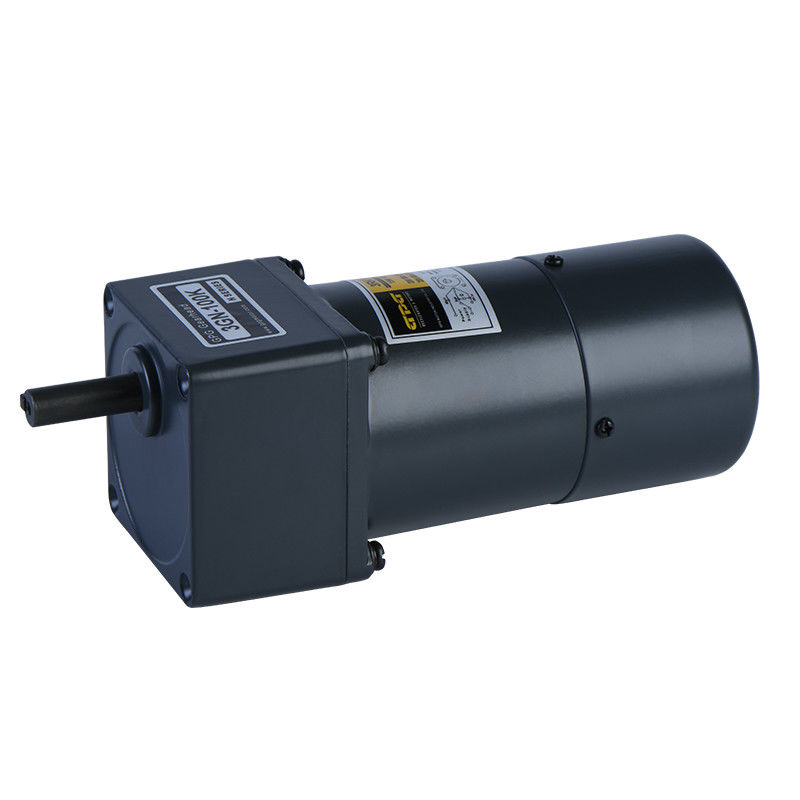

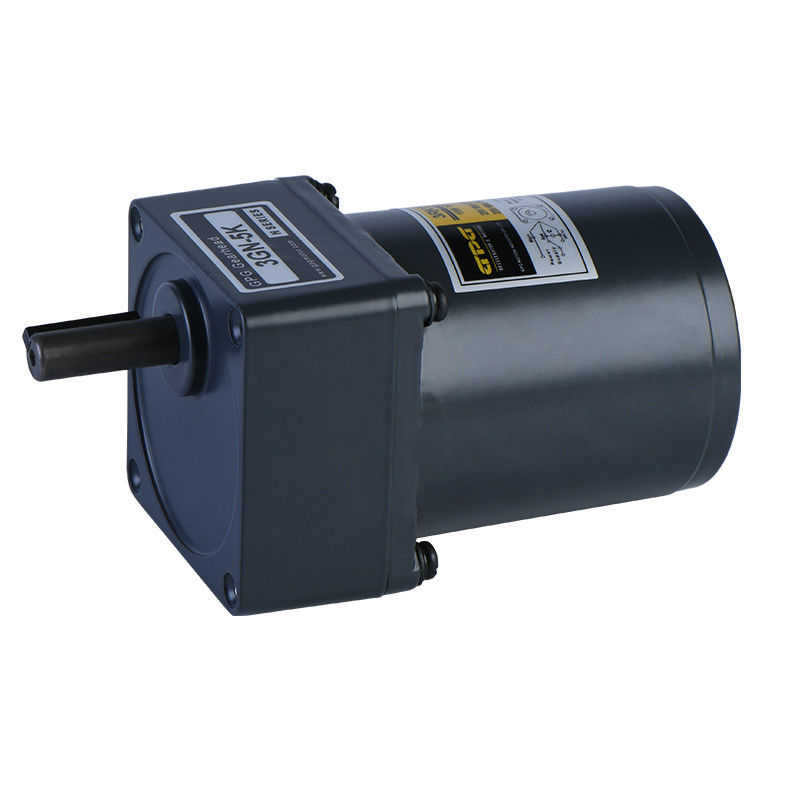

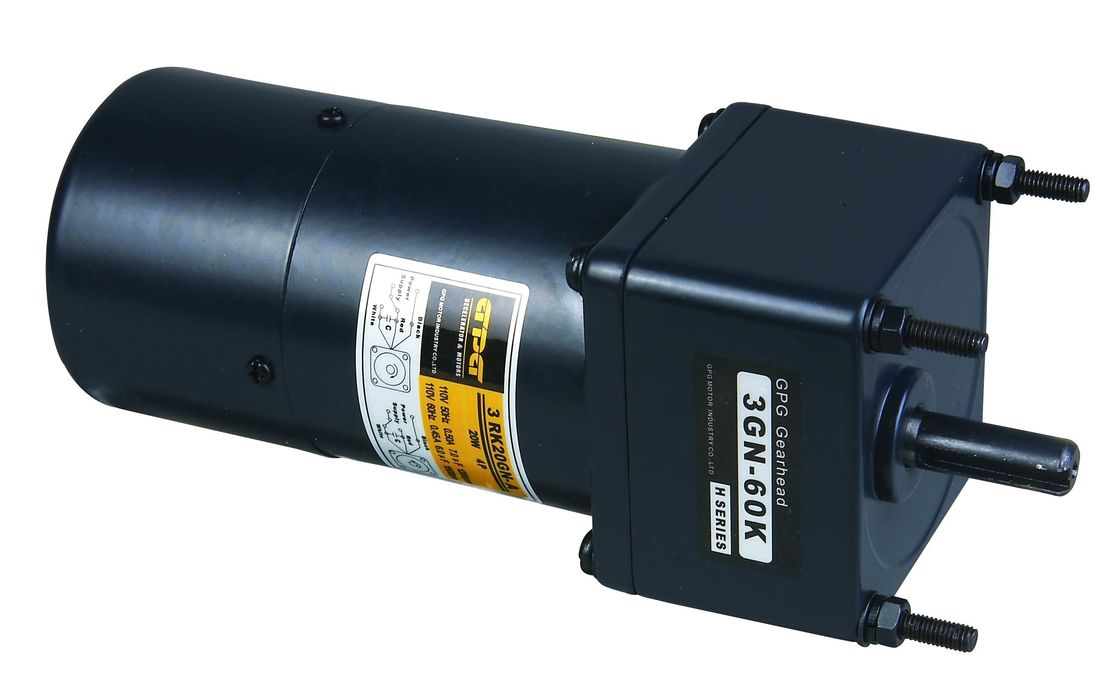

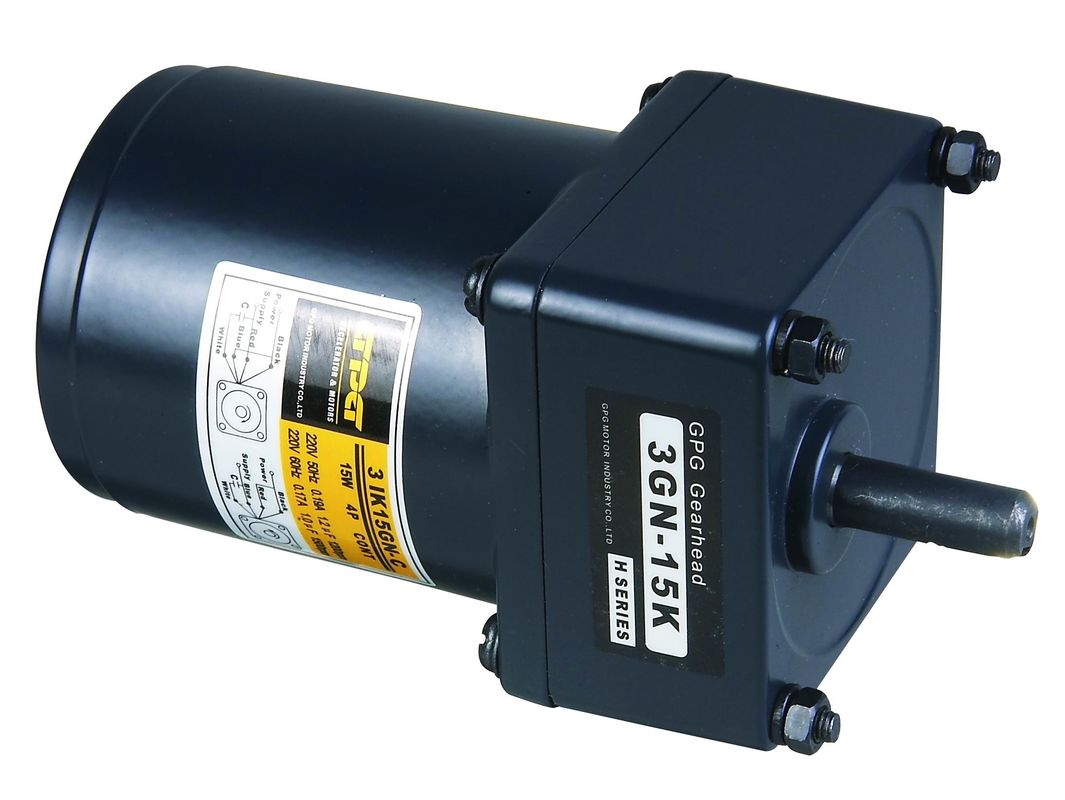

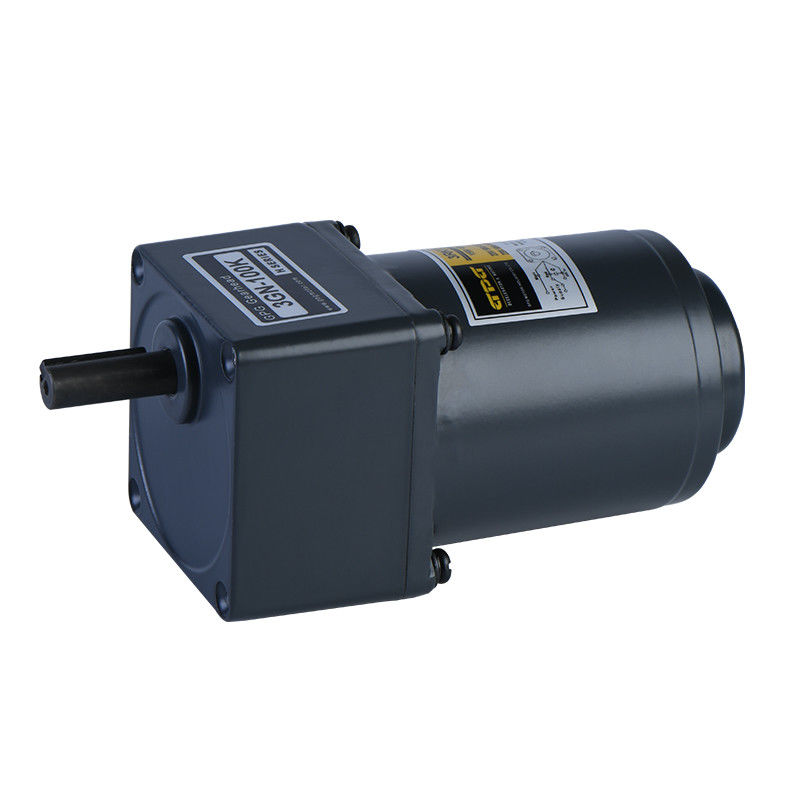

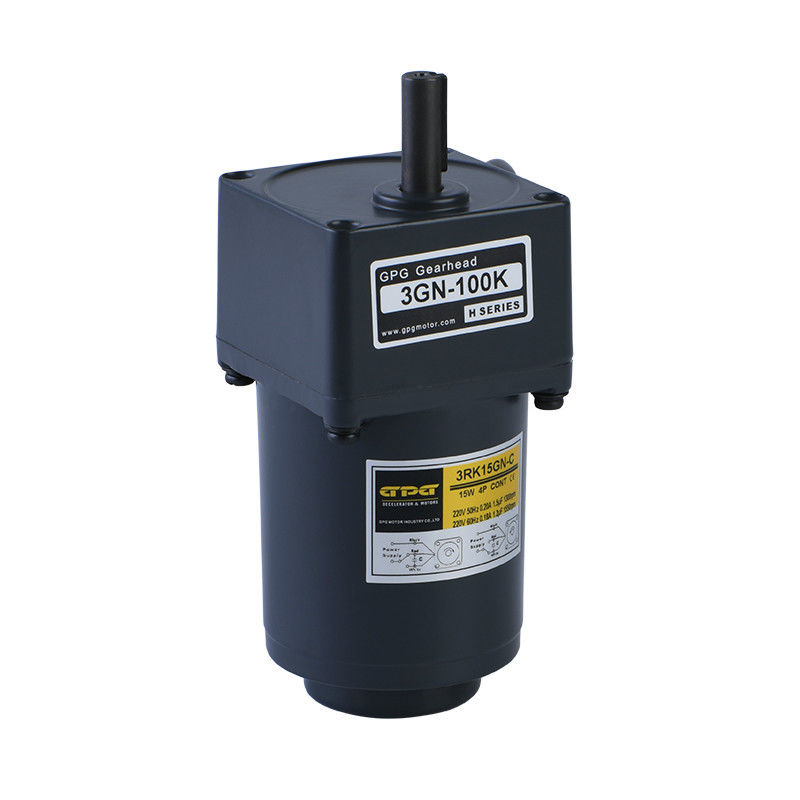

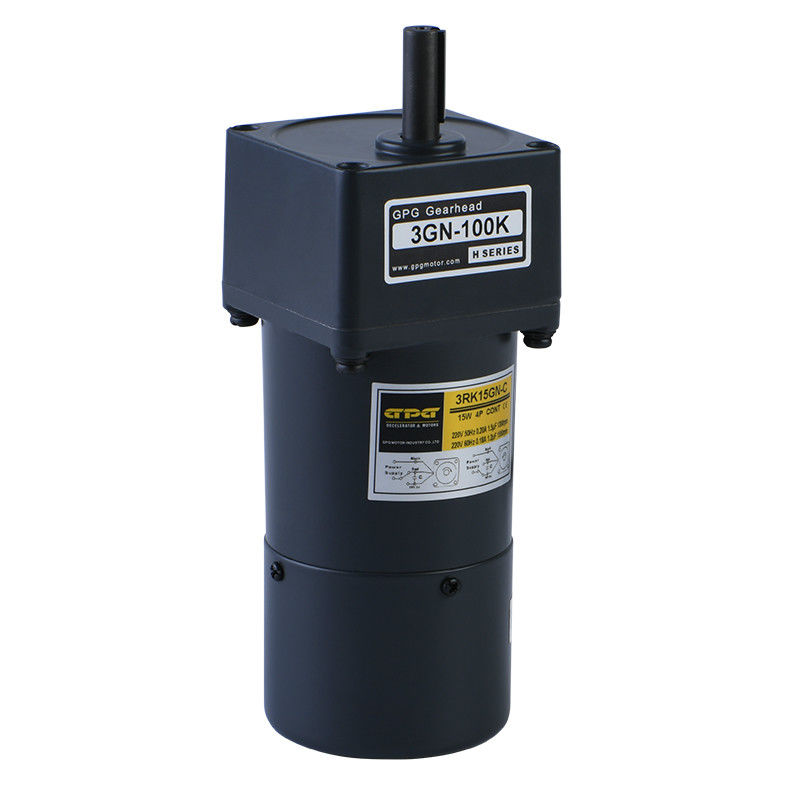

Name: 70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES
Brand: Taibang Motor Industry Group Co., Ltd.
SKU: 3RK15GN-C 3GN3-200K
Price: 30.00 USD
Availability: InStock

Home > products > AC Gear Motor >

70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES

70mm AC GEAR MOTOR

Place of Origin:

WENZHOU CHINA

Brand Name:

GPG

Certification:

Model Number:

3RK15GN-C 3GN3-200K

Request A Quote

Product Details

Material:

Aluminum , Copper, Steel

Voltage:

Single Phase 220V(Single Phase 110V)

Frequency:

50/60HZ

Shaft Diameter:

10mm Shaft With Key4*25

Ratio:

1:3-1:200

Accessories:

BRAKE TERMINAL BOX

Type:

Constant Speed Or Speed Control

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

25-35$

Packaging Details

carton

Delivery Time

7-12days

Payment Terms

T/T

Supply Ability

20000 pcs per month

GDM-07SC Brush Electric Motor With 1 3-300 3GN3-300K Gearbox And 25W Voltage 12V 24V Output Power

Get Best Price

Video

60mm 6W 2RK6GN-C 2GN3-200K CONSTANT SPEED GEARBOX ELECTRICAL YN60-6 60JB3-200G8L AC GEAR MOTOR

Get Best Price

Video

70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES

Get Best Price

Video

90mm 60W 5RK60GN-CF 5GN3-200K SPEED CONTROL FAN MOTOR AC GEAR MOTOR RK GEAR MOTOR SERIES YN90-60F 90JB3-200G10L

Get Best Price

Contact Now

Product Description

Select method

15W RK gear motor Series , IK gear motor Series, Speed control motor type,110V gear motor ,220V gear motor, constant speed gear motor

Speciﬁcation of motor 10W 70mm Fixed speed AC gear motor
TYPE	Gear tooth Output Shaft	Power (W)	Frequency (Hz)	Voltage (V)	Current (A)	Start Torque (g.cm)	Rated		Start		Gearbox type
							Torque (g.cm)	Speed (rpm)	Capacity (μF)	Resistance Voltage (V)	Bearing gearbox	Middle Gearbox
Reversible Motor	3RK15GN-C	15	50	220	0.20	1350	1200	1200	1.5	500	3GN-K	3GN10X
		15	60	220	0.18	1050	935	1500	1.2	500	3GN-K	3GN10X

Drawing: 3RK15GN-C/3GN3~200K (Short gearbox shell 32mm)

70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES 0

Drawing: 3RK15GN-C/3GN25~200K (High gearbox shell 42mm)

70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES 1

Gearbox torque table(Kg.cm)															(kg.cm×9.8÷100)=N.m
Output speed :RPM			500	300	200	150	120	100	75	60	50	30	20	15	10	7.5	6	5	3
Speed ratio		50Hz	3	3	7.5	10	12.5	15	20	25	30	50	75	100	150	200	250	300	500
Speed ratio		60Hz	3.6	6	9		15	18		30	36	60	90	120	180		300	360	600
Allowed torque	10W	kg.cm	1.7	2.7	4.2	5.5	6.8	8.3	11	13.5	16	26	40	50	50	50	50	50	50
	15W	kg.cm	2.4	4	6	8	10	12	16	19	23	39	50	50	50	50	50	50	50
	20W	kg.cm	3.2	5.3	8	10.5	13.3	16	21.3	25.3	30.5	50	50	50	50	50	50	50	50
	25W	kg.cm	4.0	6.7	10	13.3	16	20	26.7	32	39	50	50	50	50	50	50	50	50
	30W	kg.cm	4.8	8	12	16	20	24	32	38	46	50	50	50	50	50	50	50	50
Note: Speed figures are based on synchronous speed, The actual output speed, under rated torque conditions, is about 10-20% less than synchronous speed, a grey background indicates output shaft of geared motor rotates in the same direction as output shaft of motor. A white background indicates rotates rotation in the opposite direction.

Drawing is for standard screw hole, If need through hole, terminal box, or electronic magnet brake, need to tell the seller.

Basic tech data:	Retail price:
Motor type: AC gear motor	Insulation Class: E
Motor material: Aluminum , Copper, Steel	IP grade:IP44
Rotation: CW/CCW reversible	Working style:S1
Frequency: 50Hz/60Hz	Operating temperature range: -10 °C～+40°C
HS Code:8501400000	Operating relative humidity: 95% Below

Connection Diagram:

70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES 2

70mm 15W 3RK15GN-C 3GN3-200K CONSTANT SPEED AC GEAR MOTOR RK GEAR MOTOR SERIES 3

Note

Specifications for reference only.

Shaft dimension and specifications(voltage, torque, speed, etc) can be customized.
